شناسه محصول : 51223133
| نیروی محرکه | SERVO MOTOR |
|---|---|
| تعویض ابزار اتوماتیک | Yes. Linear Automatic Tools Changing. 4 Tools. |
| کنترل صنعتی | NC STUDIO. |
| هندویل دستی | Yes |
| صفر کننده اتوماتیک ابزار | Yes |
| سرعت پیشروی | 45 M/MIN |
| نوع میز | Vacuum |
| توان وکیوم میز | 7.5 kw, Water Circulation. |
| ریل های راهنمای محور X.Y.Z | Cubic, Taiwan. |
| نحوه انتقال نیروی محورهایX.Y | German/Taiwan Diagonal Pinion Gear |
| نیروی انتقال محورZ | TBI Ballscrew, Taiwan. |
| اینورتر | 11 kw, Delta, Taiwan. |
| توان | 18.5 KW |
| ابعاد محیط کار | 230*1300*2500 mm |
| سرعت دوران اسپیندل | 24000RPM |
| توان اسپیندل | 6 kw, Air Cooling, Italy Technology. |

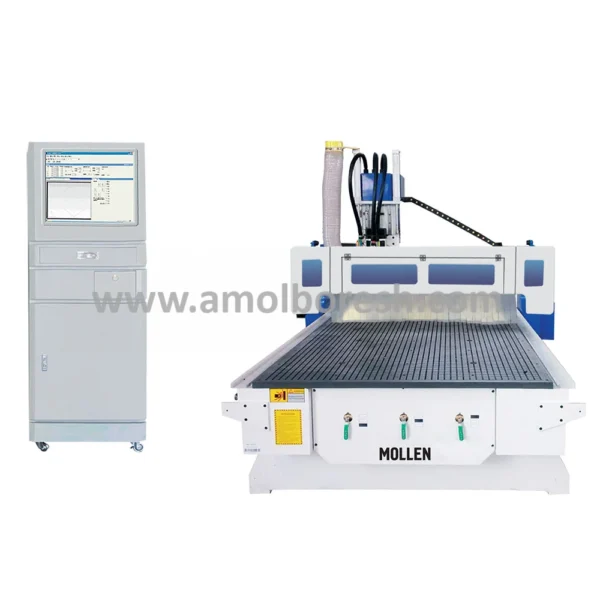

Wm1325 is from WM CNC machines family that has the ability to cut and engrave two-dimensional and three-dimensional onto smooth and curved surfaces and is distributed and supplied by the Mollen Company to the country’s wood industry. The main feature of this group of CNC machines is its customization capabilities. So that you can order this device in any size of the table and in any number of spindle and rotary that it is exactly for your needs. Ordering the desired dimensions of the device is a great advantage that allows buyers to choose the machine exactly accordance with the environment and area of the workplace. Another feature of customization is the increase of the spindle motor of the machine. The main engine, mounted on the machine, is an air-cooled 6 kilowatts of Italy with a capacity of up to 9 kilowatts, as well as a spindle speed of 18000rpm, that is, the ability to rotate 18,000 times per minute.
Another advantageous feature of this device is the use of a servomotor that speeds up and accurately operates simultaneously. The type of vacuum table with circulating 7.5kW of water that holds the work piece firmly on the table is another advantage of the device. For a closer look at the device, we have a characteristic table of a list of device specifications, so that the values assigned to each feature are facing them. For a better choice of the device, paying attention to this table is essential for the buyer.
CNC machines from the optima series are the most equipped and advanced CNC machines that are distributed and supplied by Mollen to the active market for wood and metal industries in the country. Combining many of the features of this device, it has become one of the most trusted CNCs. The 9000 KW air-cooled spindle of Italys finest technology, which has a capacity of 24,000 rpm, enables the machine to penetrate every layer of thickness and any kind of surface. The servo motor propulsion engine has made the machine more accurate and faster than the stepper motors, thanks to the feedback received during each round and it produces less noise than others. The type of vacuum table with a circulating water of 7.5 kW, the transmission of axial forces X, Y and the Z-axle transmission force provided respectively by the diagonal pinion gear of Germany and the German ball screw, with an excellent speed of 60 m per minute, and zeroing The automatic tool are outstanding features that distinguishes this device from other CNC devices.
The optima1325 has the ability to carry 8 tools simultaneously for engraving designs, two-dimensional and three-dimensional wood carving on flat surfaces and curves. Since the mention of all the features of the device does not fit into a text, we have provided a video to illustrate how this device works, and has a table so that the user can purchase the device from Mollen as accurately as possible.
Am1325b is an AM machine that MOLLEN is supplying for wood industry markets. It is used for wood carving on smooth and curvy surfaces, and 2-D and 3-D engraving. One of the special features of AM family is the customizable advantage of it, so that, you can order it in any table measure, any number of spindle head and rotary, and in single-phase power supply. Central oil system, German diagonal pinion gear which is used for X and Y axes power transmission, and ability to reset tools and work pieces automatically.
Machines spindle has the ability to rotate 18000RPM which is from Italy cool air technology with 6KW power that is one the best technologies in spindle manufacturing. motors motive force that starts the operation is a stepper motor. However, it is not enough to just consider the mentioned features of the device. We recommend you to check the characteristic table of the machine in this page in order to purchase your intended product most concisely. Also there is a video that shows the performance of the machine and you can watch it to upgrade your informations.
