MZ-450DJ

SKU: لبه چسبان MZ-450DJ Category:
Share this article if it was useful for you.

صنعتگر گرامی، جهت استعلام قیمت و مشاهده شرایط پرداخت این ماشین. باید وارد سایت شوید:

اگر علاقه مند به خرید دست دوم این ماشین هستید، روی دکمه زیر کلیک کنید!

MZ-450DJReviewed by MeTaNa on Jun 11Rating:

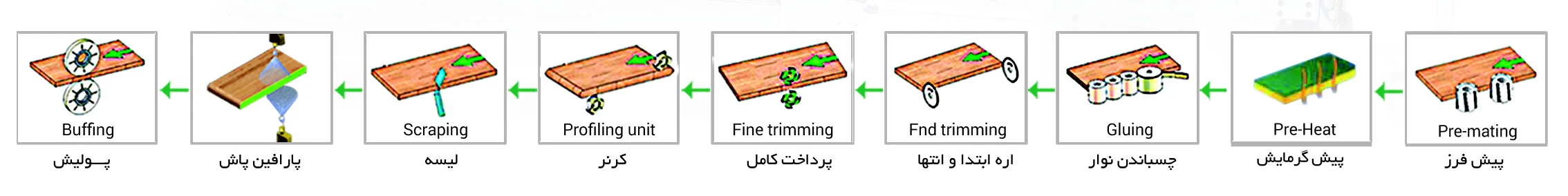

The MZ450Dj is a sophisticated, intelligent, advanced, and superior machine in the quality of German assembly line and its made up of 6 fully automatic stations, pre-milling, taping, head and bottom, full payment of the corrugator, paraffin and polisher. The superior feature of the machine is the simultaneous operation of the pre-mill and pre-heating station of the workpiece, so that the workpiece after the payment at the pre-mill station, the temperature rises to an extent that the task of pasting the tape with more ease, and thus more precise. At the twin-engine corner, its possible to be machined with hubs, all types of parts, such as the edge of the bed, half-edges, rounded edges and tooling edges.

The speed of the device can vary between three speeds, 12, 16 and 21 meters per minute, which can be done by the touch control panel of the device with digital data. Through this touch screen, you can adjust the height of the upper jaw for the thickness of the piece and the pneumatic jacks for the tape thickness, or the angle of the polisher of the polisher station to make the highest level of work pay. The MZ450Dj has a paraffin embedded system, which, during the passage of the workpiece from this process, shimmering material is sprayed on the surface to make the best work in the polishing plant on the workpiece, and the better and cleaner output.



Feed Speed

12/16/21 M/MIN

Min Work-piece Length

120MM

Min Work-piece Width

80 MM Without Cornering – 130 MM With Cornering

Work-piece Thickness

10-55 MM Without Cornering – 10-50با With Cornering

PVC Thickness

0.4-3 MM

PVC Width

15-65 MM Without Cornering- 55-15 With Cornering

Input Air Pressure

6-8 Bar

Input Voltage

380 V – 11.5 KW

Machine Dimension

~6100*1100*1600 mm

Weight

~2500 kg
