GALA1500-2Axis

SKU: سی ان سی خراطی GALA1500-2Axis Category:

صنعتگر گرامی، جهت استعلام قیمت و مشاهده شرایط پرداخت باید وارد سایت شوید.

لوازم یدکی این دستگاه را میخواهید بخرید؟ روی دکمه زیر کلیک کنید!

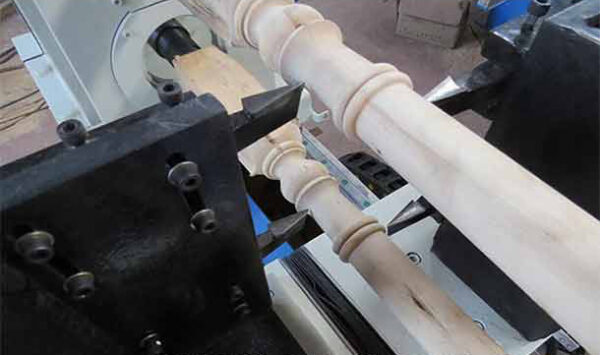

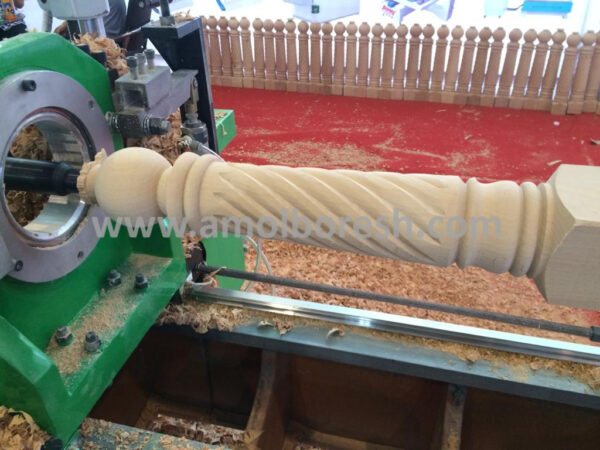

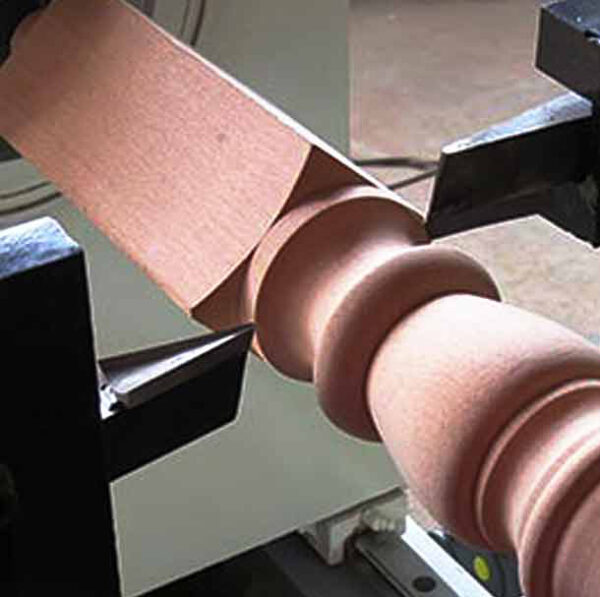

The GALA1500-2Axis machine, a CNC 4-blade machine with milling, directional, engraving and machining of a variety of geometric shapes, has been recently introduced by Mollen to the countrys woodworking industry with a one-year warranty. The up-to-date components, systems, and device equipment make it possible for users to create sophisticated designs and geometric shapes to create beautifully on the wood. The operating instructions of the machine are read through various programs such as AutoCAD, Corel, and Artek. These operating procedures, with the availability of the machine to the 4 blades, and the control of the four axes simultaneously, are carried out at the highest quality and the least waste of time. It has a central lubrication system and uses an automatic locking system, as well as an engraving grinder to perform grooving operations. It should be noted that the transmission of power in the longitudinal and transverse axis of the screw ball and the transmission of power in the rotation axle is carried out with a gearbox .

Equipped to 4 blades to increase the quality

Controlling four axes simultaneously

Automatic locking system

Central lubricant system

مدل

GALA1500-2Axis

طول قطعه کار

1500MM

قطر قطعه کار دو محوره

180MM

قطر داخلی پمپ

280MM

قطر قطعه کار تک محوره

320MM

تعداد تیغه براده بردار

4

توان موتور

5.5KW

نوع کنترلر

DSP

سرعت کار

15M/MIN

وزن دستگاه

1750KG

ابعاد دستگاه

~3000*1000*1300MM

برق دستگاه

380V

توان مصرفی

8KW

نوع مرغک

Pneumatic
