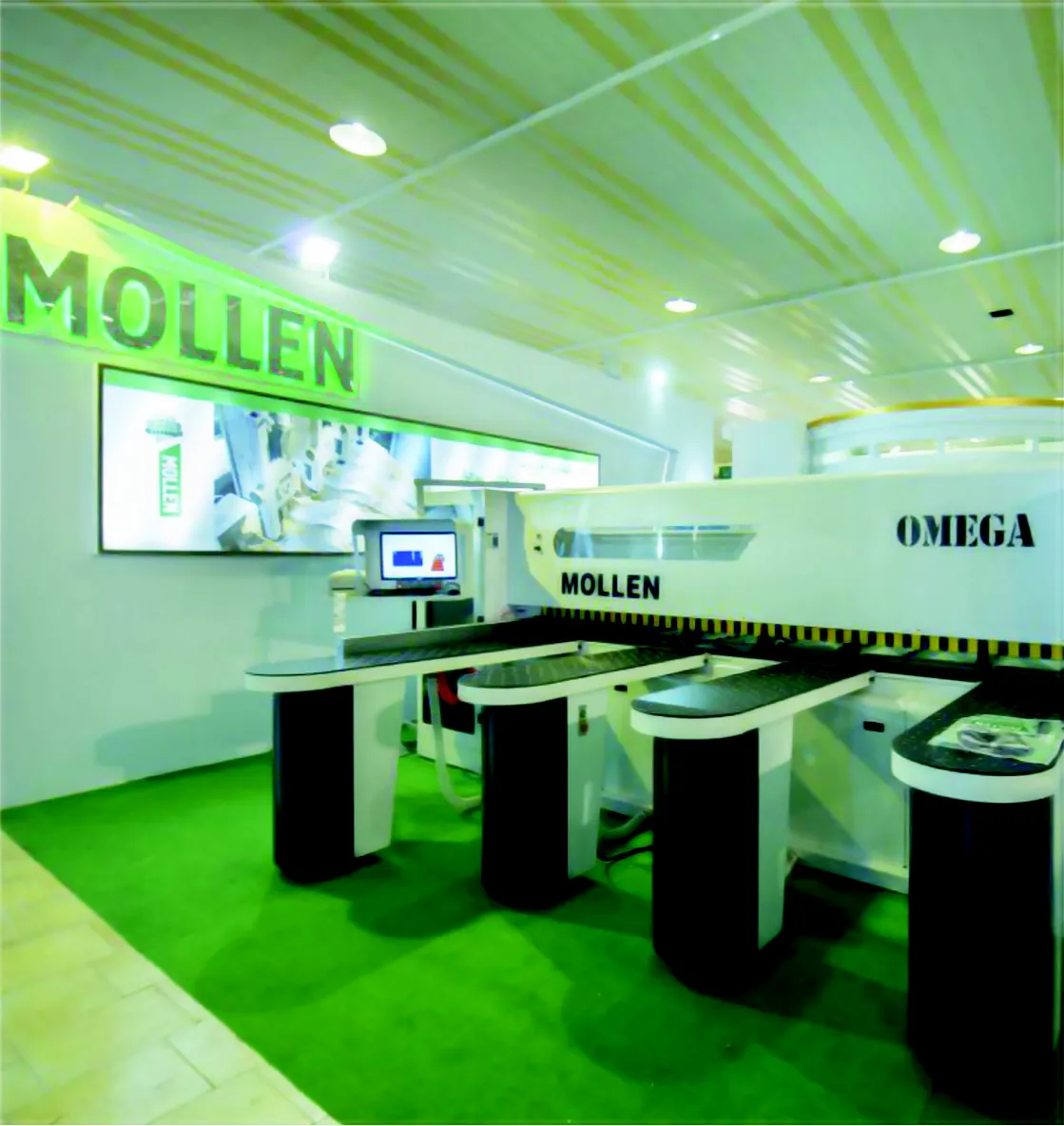

The Omega Panel can be one of the most advanced machines made for use in the wood industry. Making this machine with the best electronic and mechanical brands makes it one of the most quality panels. Electric appliance, PLC and its 25 hp high-power engines from Siemens and servo motors are from Panasonic Japan company.

The Omega Panel has the ability to cut 7 boards simultaneously on one another, optimized for optimization and cutting. Having the operating system allows the user to use the Siemens PLC on Windows 7 to the top, and can remotely troubleshoot cutting operations.

Other features of the car panel on the Omega that prefers to other panel panels:

10 Robotic Arm Roof.

  Highly durable and durable body.

  Printer.

Use the best European brands in the electrical array.

Roller shuttle system or use Rack & Pin.

  Succession to the person Allignment uses German technology to increase the accuracy of cutting and large and small pieces.

Intelligent automatic lubrication system.

____________________________________________

Automatic Lubrication system

to cut 7 planes on each other.

thick structure and immune to shakes

For more information about cutting thickness, saw blade, engine speed and power, and power, you can see the inserted profile table.

Cutting Length

3800 mm

Cutting Width

120 mm

Main Saw Diameter

400MIN

Groove Saw Diameter

200 mm

Main Motor Speed

4800 rpm

Grooving Motor Speed

6500 rpm

Cutting Speed

0-100 m/min

Return Speed of Higsaw

80-100 m/min

Jigsaw Proceed Speed

80 m/min

Min Cutting Width

60 mm

Main Motor Power

20 Hp

Grooving Motor Power

5 Hp

Jigsaw Servo Motor Power

3 Hp

Clutch power supply servo motor

4 Hp

Blower Power

3 Hp

Pusher Robotic

10 Devices

Energy Transfer for Moving the Jigsaw

Pinion Gear and Gearbox with Servo Motor Input

Transferring power to move the clamps

Pinion Gear and Gearbox with Servo Motor Input

Tables

4 Pieces

Table Type

Table with steel bullets to suspend work-piece

PLC

SIEMENS

OS

Windows 7

Screen Size

24" (DELL)

Other Electrical Parts

SIEMENS

OPTIMIZER

Yes

Printer (Label Marker)

Yes

Machine Dimensions

2100*6700*6900 mm

Weight

7500 kg

Automatic Lubrication system

Yes
